1、 Overall performance of the equipment

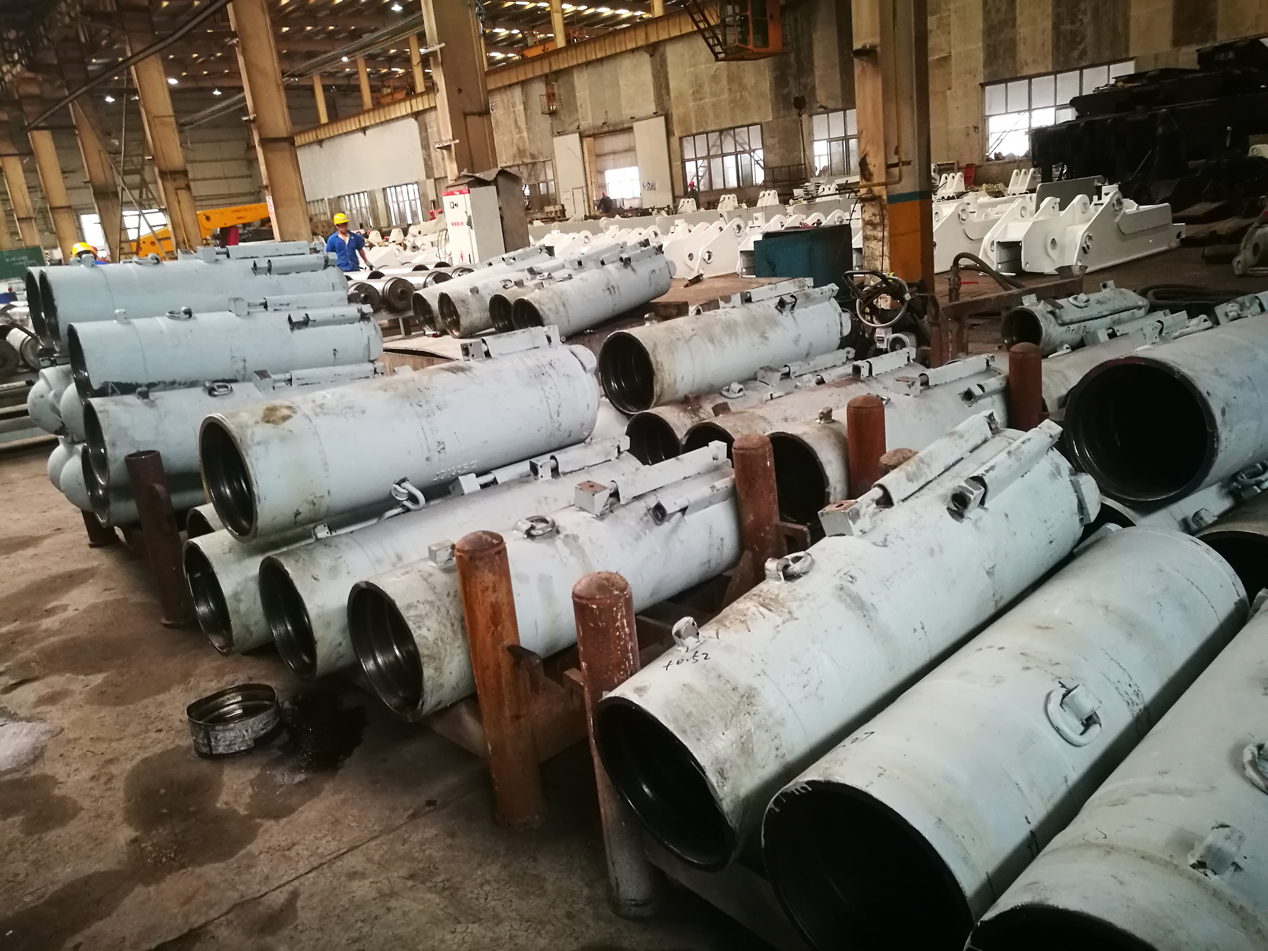

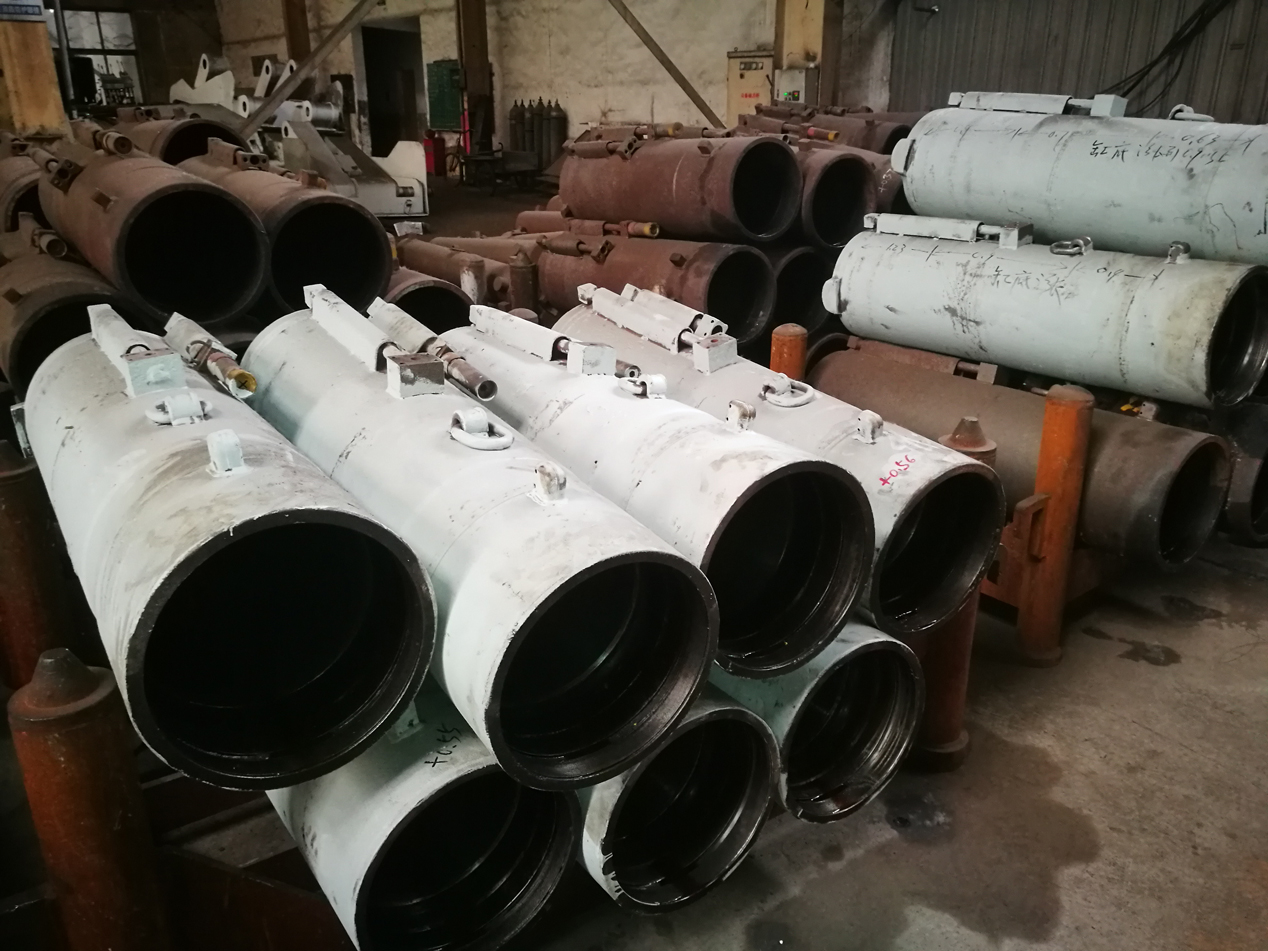

1. Suitable for honing the inner holes of cylinder products with a workpiece diameter of 97mm-450mm and a workpiece length of 1000MM-2850MM; The use of through holes and blind holes is simple and convenient.
2. The surface roughness of products processed by machine tools should be ≤ Ra0.4.
3. Work efficiency requirement: 7 days per week × Working 24 hours, the equipment is required to have the ability to work continuously without stopping, with an average monthly working time of no less than 700 hours.
2、 Main technical parameters of the equipment
technical parameter
Machine tool overall size: 8540 × one thousand × 800 (excluding cooling system) machine tool
Total power: 13.5KW
Processing range: maximum length: 2850mm, maximum aperture: φ 450mm
Minimum aperture: φ 97mm
Clamping range: 50mm-400mm 400mm-620mm
Processing rhythm: average: 350-450cm3/h, maximum: 700 cm3/h
Dimensional accuracy: H6-H8
Roundness: 0.01mm-0.03
Roughness: Ra0.08-Ra0.4

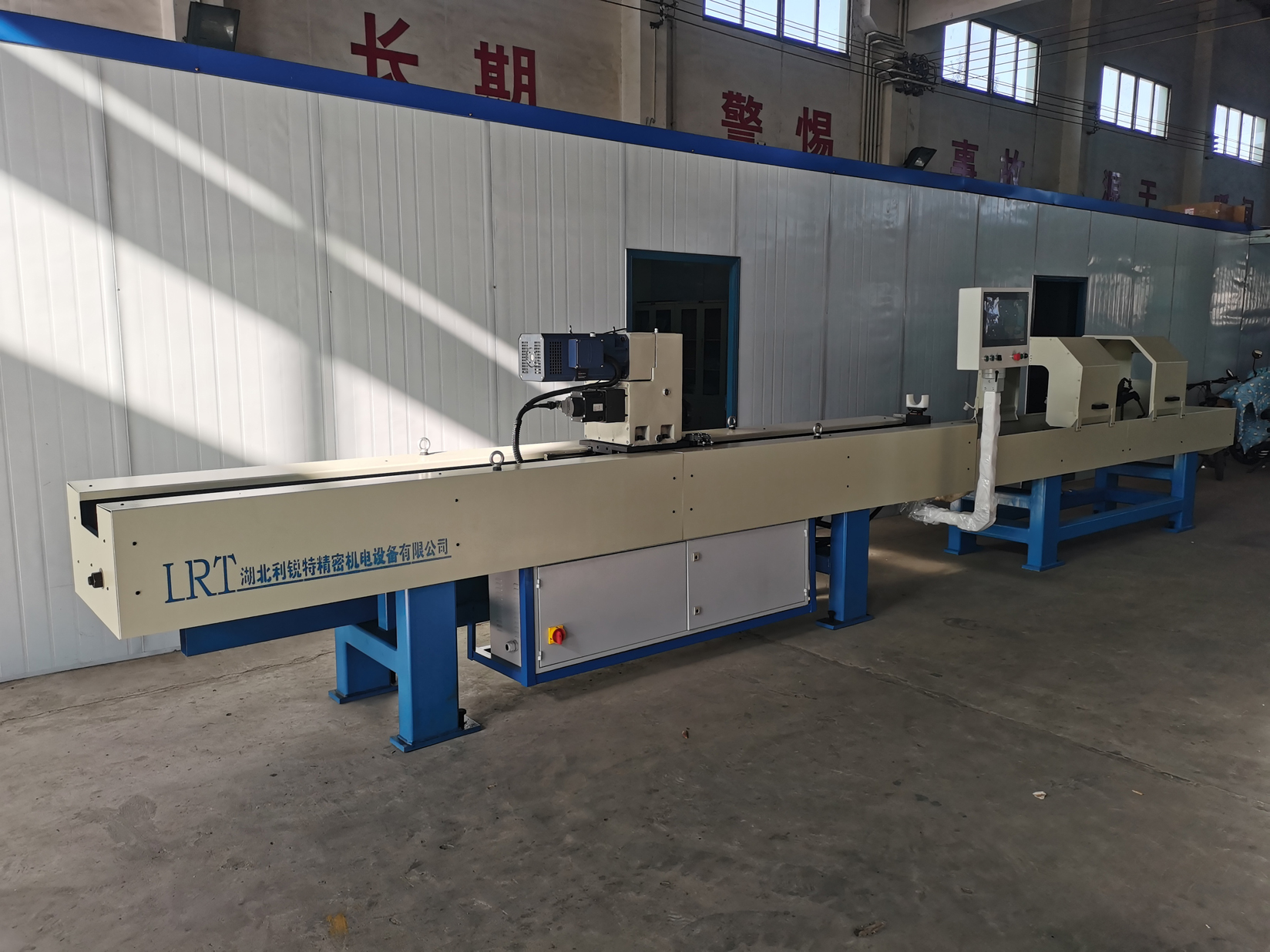

3、 Main equipment configuration and functions
1. Spindle system:
The spindle is driven by a gearbox, and the spindle motor is a servo motor. The spindle box drag plate sliding device can easily remove the spindle box and honing tools from the processed hole after a honing cycle, remove the spindle bracket, and facilitate hole inspection and measurement, as well as replacing oil stones and workpieces; The tool support supports the weight of the honing head, keeping it in a safe state to avoid scratching the workpiece.
2. Control system:
Fully digital industrial computer control, dedicated honing machine control system. 15 inch LCD touch screen operation, user-friendly interface, large information capacity, simple and convenient operation.
Real time data collection, real-time feedback, and parameter adjustment. After connecting to the internet, remote fault diagnosis can be achieved, and device maintenance is simple.
The dynamic database of ultra strong machining parameters allows the operator to input the inner diameter of the workpiece, and the machine tool automatically generates parameters such as the corresponding spindle speed, spindle box gear, maximum load rate, and maximum protection torque. Minimize the workload of operators and effectively prevent incorrect operations.
When processing blind hole parts, after setting the relevant parameters, the operator only needs to start, and can perform short stroke or small pause functions on the blind end and both ends of the through hole parts. The commutation accuracy reaches 0.1 millimeters, and independent online measurement and automatic correction programs for machining loads can achieve automatic control of local honing.
3. Oil stone feed control system:
During processing, it can detect the high and low points inside the hole in real-time, as well as the taper of the hole, and reflect it in real-time in the form of graphics on the display screen. For the discovered high and low points, manual operation is not required, and the machine tool will perform short stroke repair on the high points itself; When the machining curve approaches a straight line, the cylindricity of the inner hole is already highly consistent. At the same time, it also supports manual short stroke repair, with adjustable number and amplitude of short strokes.
4. Tool slide:
After honing, the spindle bracket can be removed from the slide for easy hole inspection and measurement, as well as for easy replacement of workpieces and oilstones. The tool support supports the weight of the honing head. The tool support device keeps the honing head in a safe state and does not scratch the workpiece.
5. Cooling and filtration system:
The equipment filtration system is equipped with a magnetic separator filtration device. The magnetic separator can automatically remove honing mud, reducing the labor intensity of operators. Filtering accuracy less than 20 μ M.
6. Programmable touch screen
